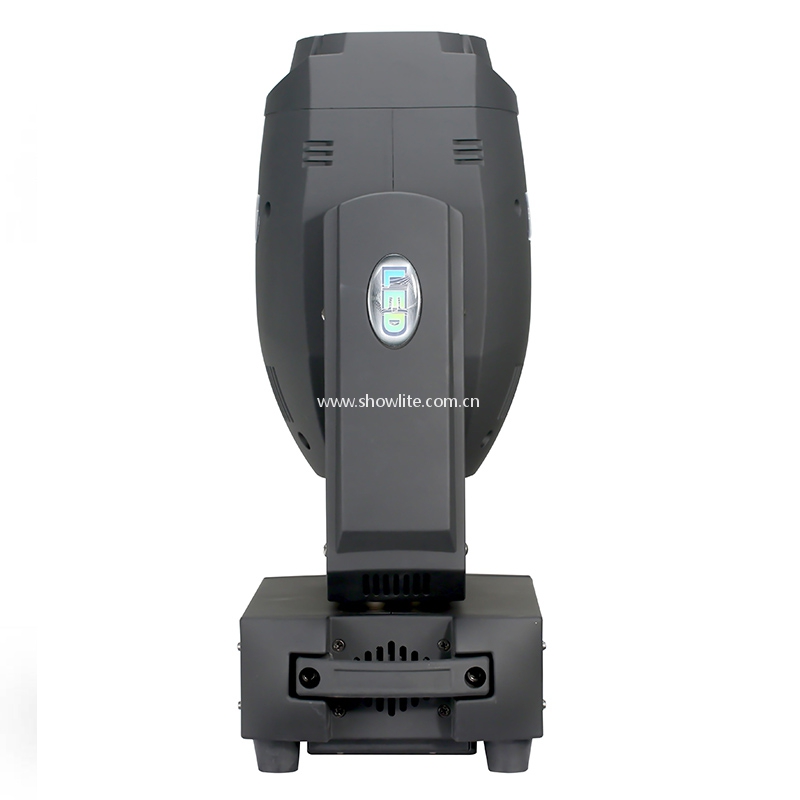

SL-M200-BS is a professional spot light using 200W LED module as its light source. It combines the latest technology of intelligent fan control, encoder positioning,smooth dimming, unique optical design and the wide optical lens to make uniform beam and spot light and ensure a luminous flux.
LED module outstand its great advantages of f long life span and low power and environmental protection and energy saving.
It is suitable for TV stations, theatres, stages and large-scale performance places.
LIGHT SOURCE
High power 200W White LED
Lumen 5850LUX@5M
Life span: 50000 hours
OPTICAL SYSTEM
Beam Angle: 8-15°
Lens: High-quality optical lens
COLOR SYSTEM
Color wheel: 7 colors + white
Half color effect, variable direction with adjustable speed
Step/linear conversion color optional
EFFECTS
Static gobo: 8 fixed gobos + white
Rotation Gobo: 6 gobos +white
shaking and two-way rotation, the effect and speed can be adjusted
3-facet circular prism bi-directionally rotatable at variable speeds
MOVEMENT PARAMETER
Pan 540°, Tilt 270°
Movement quicker, smoother and more mute.
CONTROL AND PROGRAMMING
Control Channel: 6/18 control channel modes
Protocol: Standard DMX512,Random,Sound,Auto,Built-in,Optional
Menu display: LCD display,Chinese and English language; menu available to display 180° reversely.
Power Connection: PowerCon-input/output
DMX Signal Connection: 3-pin XLR input/output
ELECTRONIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console
0-100% dimmer
0-100% linear focus
Constant current drive mode
DMX channel level monitoring
Fixture information query
Initial brightness setting for all colors
POWER SUPPLY
AC110-240V/50-60Hz
Input Power: 220W
Overcurrent, overvoltage and overheating protection
WORKING POSITION
Any safe position to install
WORKING TEMPERATURE
﹣10℃ - 45℃
PHYSICAL
Fixture:
Net Weight: 12 kgs
Product Dimension: 475*355*480mm
IP RATE
IP20
MISC/OPTIONS
User manual: included
Power cable: included
DMX cable: included
Safety cable: included
Mounting clamp: not included
Flight case: not included
