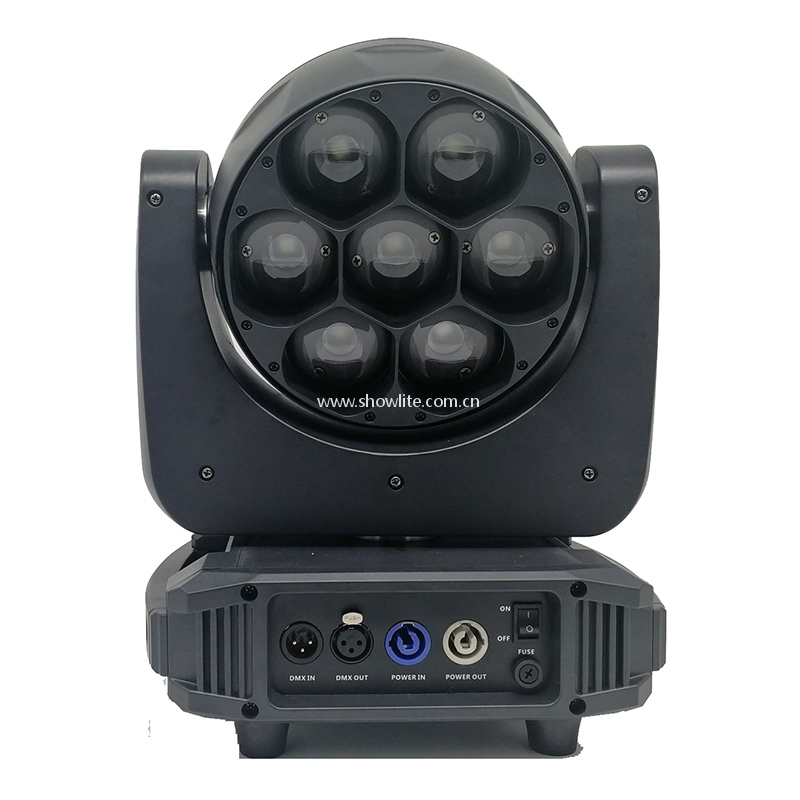

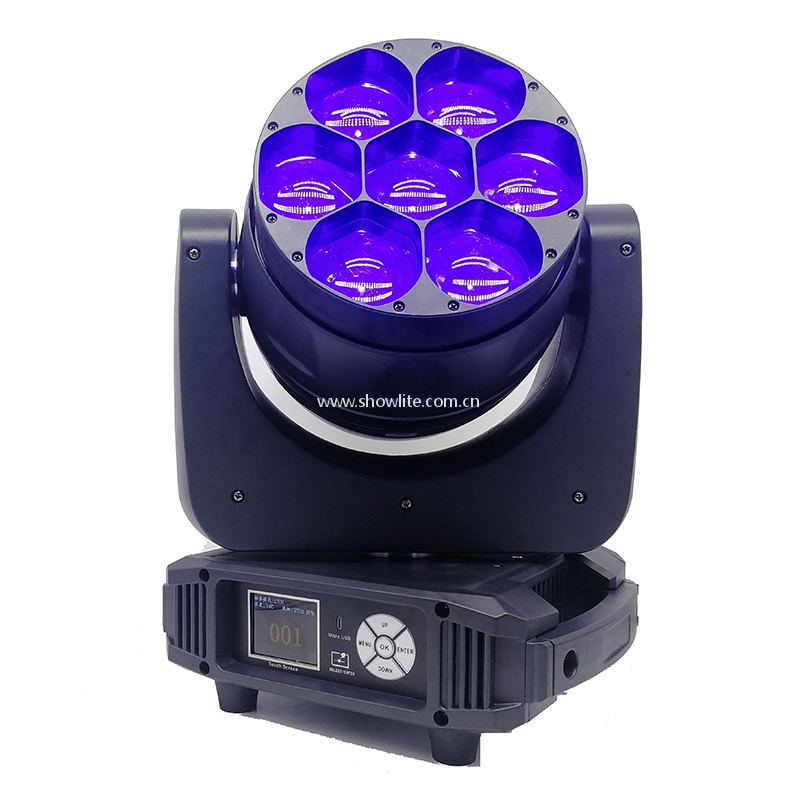

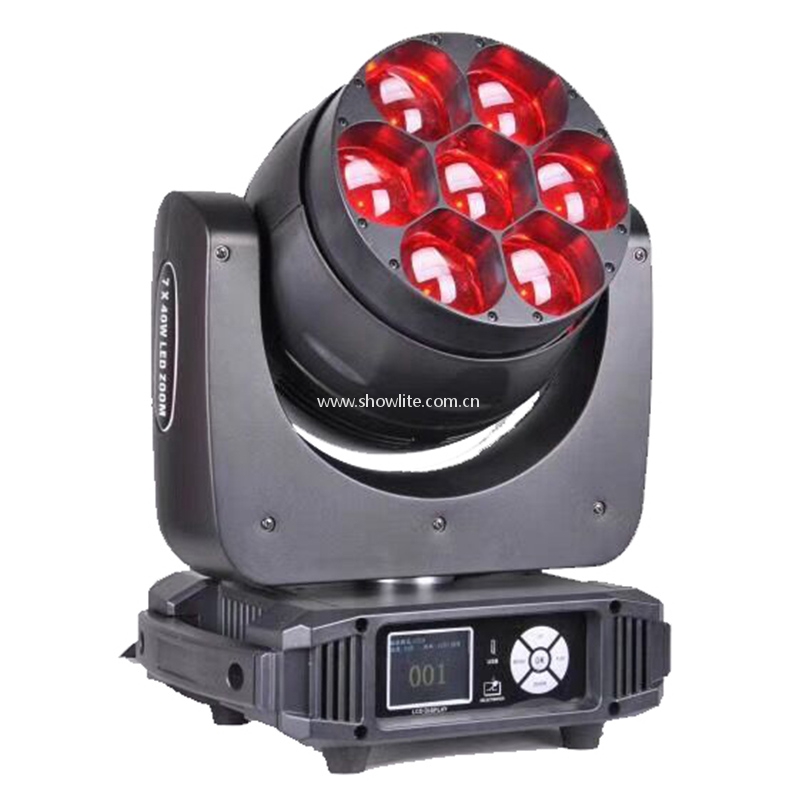

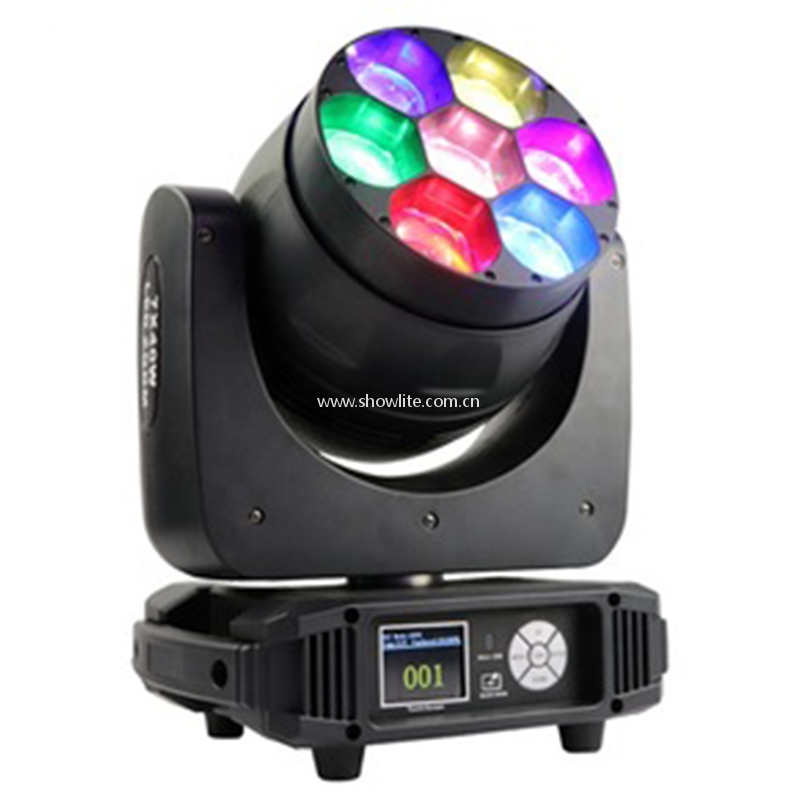

SL-M740-W is a moving head wash luminaire with excellent zoom effect with CTO function, It is equipped with high-quality Osram RGBW 4 in 1 40w LEDs as its light source with characteristic of environment-friendly and energy-saving, making multiple wash and strobe effects at fast response speed.
It is suitable for TV station, conference center, professional theatre, theme park, disco and entertainment places.
LIGHT SOURCE
Osram High Power 4in1 40w*7pcs
Life Span: ＞ 50,000 hours
OPTICAL SYSTEM
Zoom angle: 4° - 36°
Lens：High-quality optical lens
COLOR SYSTEM
RGBW 4in1 Color Linear Mixing
EFFECTS
All-optical domain dimming, grade dimming accuracy
Color macro and gradual color change effects
CTO 2700K-8000K color temperature linear adjustment
MOVEMENT PARAMETER
Pan 540°, Tilt 270°
Movement quicker, smoother and more mute.
CONTROL AND PROGRAMMING
Control Channel: 12/17 Channels
Protocol: Standard DMX512,Random,Sound,Auto,Built-in,Optional
Menu display: LCD display,Chinese and English language; menu available to display 180° reversely.
Power Connection: PowerCon-input/output
DMX Signal Connection: 3-pin XLR input/output
ELECTRONIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console
0-100% dimmer
Constant current drive mode
DMX channel level monitoring
Fixture information query
Initial brightness setting for all colors
POWER SUPPLY
AC110-240V/50-60Hz
Input Power: 300W
Overcurrent, overvoltage and overheating protection
WORKING POSITION
Any safe position to install
WORKING TEMPERATURE
﹣10℃ - 45℃
PHYSICAL
Fixture:
Net Weight: 9.5 kgs
Dimension: 310*225*370mm
IP RATE
IP20
MISC/OPTIONS
User manual: included
Power cable: included
DMX cable: included
Safety cable: included
Mounting clamp: not included
Flight case: not included
