LIGHT SOURCE

High Power 4in1 60w*7pcs + 210pcs 0.3w RGB LEDs

Life Span: ＞ 50,000 hours

OPTICAL SYSTEM

Zoom angle: 4° - 60°

Lens：High-quality optical lens

COLOR SYSTEM

RGBW 4in1 Color Linear Mixing

EFFECTS

All-optical domain dimming, grade dimming accuracy
Each LED and color can be control alone,variety of gorgeous effects
Lens can be 360° unlimit rotatable at variable direction and speed

MOVEMENT PARAMETER

Pan 540°, Tilt 270°

Movement quicker, smoother and more mute.

CONTROL AND PROGRAMMING

Control Channel: 20/36/57/93/23/39/67/103/106Channels

Protocol: Standard DMX512,Random,Sound,Auto,Built-in,Optional

Menu display: LCD display,Chinese and English language; menu available to display 180° reversely.

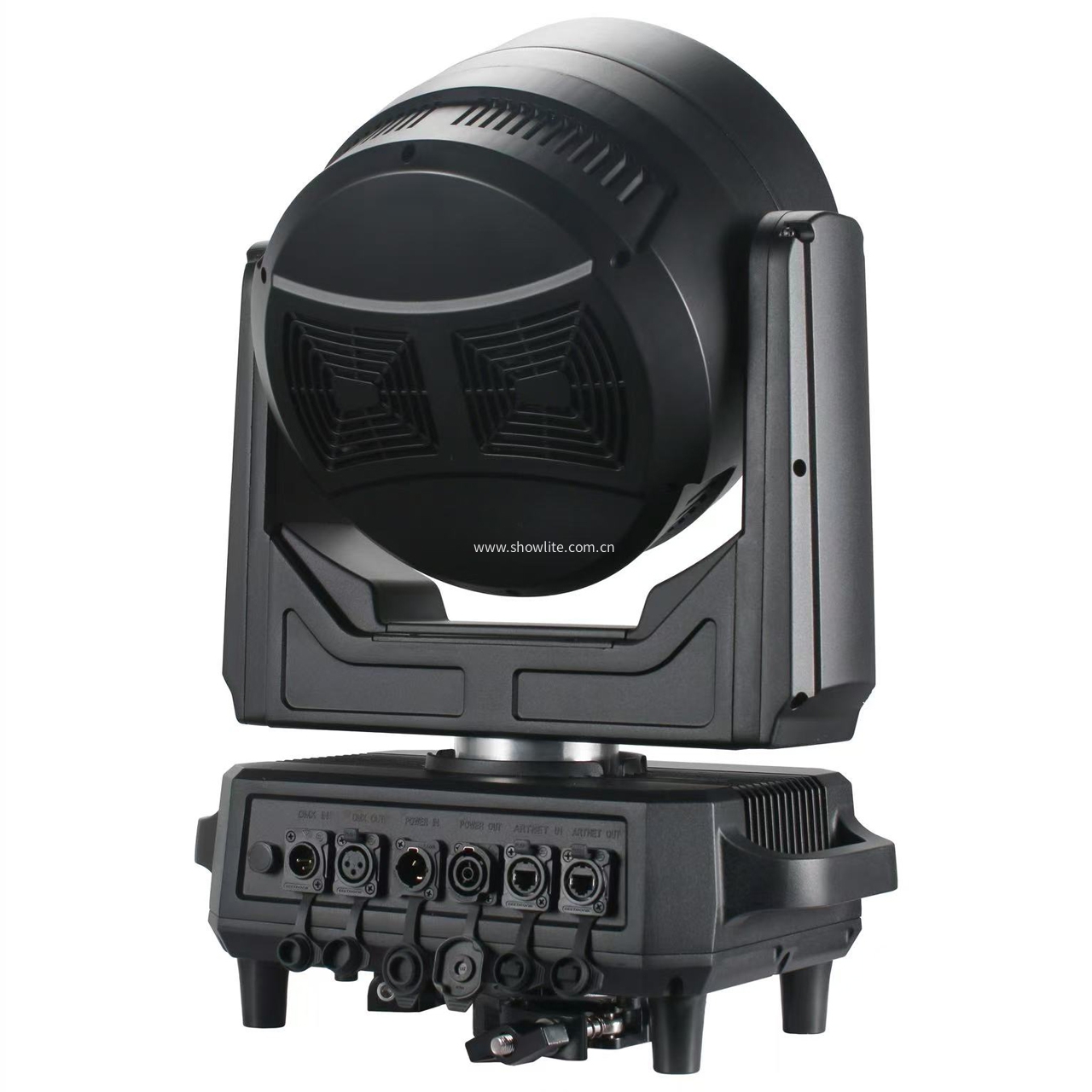

Power Connection: Seetronic Waterproof PowerCon-input/output

DMX Signal Connection:Seetronic Waterproof 3-pin XLR input/output

Art-Net Connection：Seetronic Waterproof Art-Net XLR input/output

ELECTRONIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console

0-100% dimmer

Constant current drive mode

DMX channel level monitoring

Fixture information query

Initial brightness setting for all colors

POWER SUPPLY

AC110-240V/50-60Hz

Input Power: 800W

Overcurrent, overvoltage and overheating protection

WORKING POSITION

Any safe position to install

WORKING TEMPERATURE

﹣10℃ - 45℃

PHYSICAL

Fixture:

Net Weight: 20 kgs

Product Dimension: 392x283×511mm

IP RATE

IP65

MISC/OPTIONS
User manual: included
Power cable: included
DMX cable: included
Safety cable: included
Folding clamp: included
Flight case: not included
