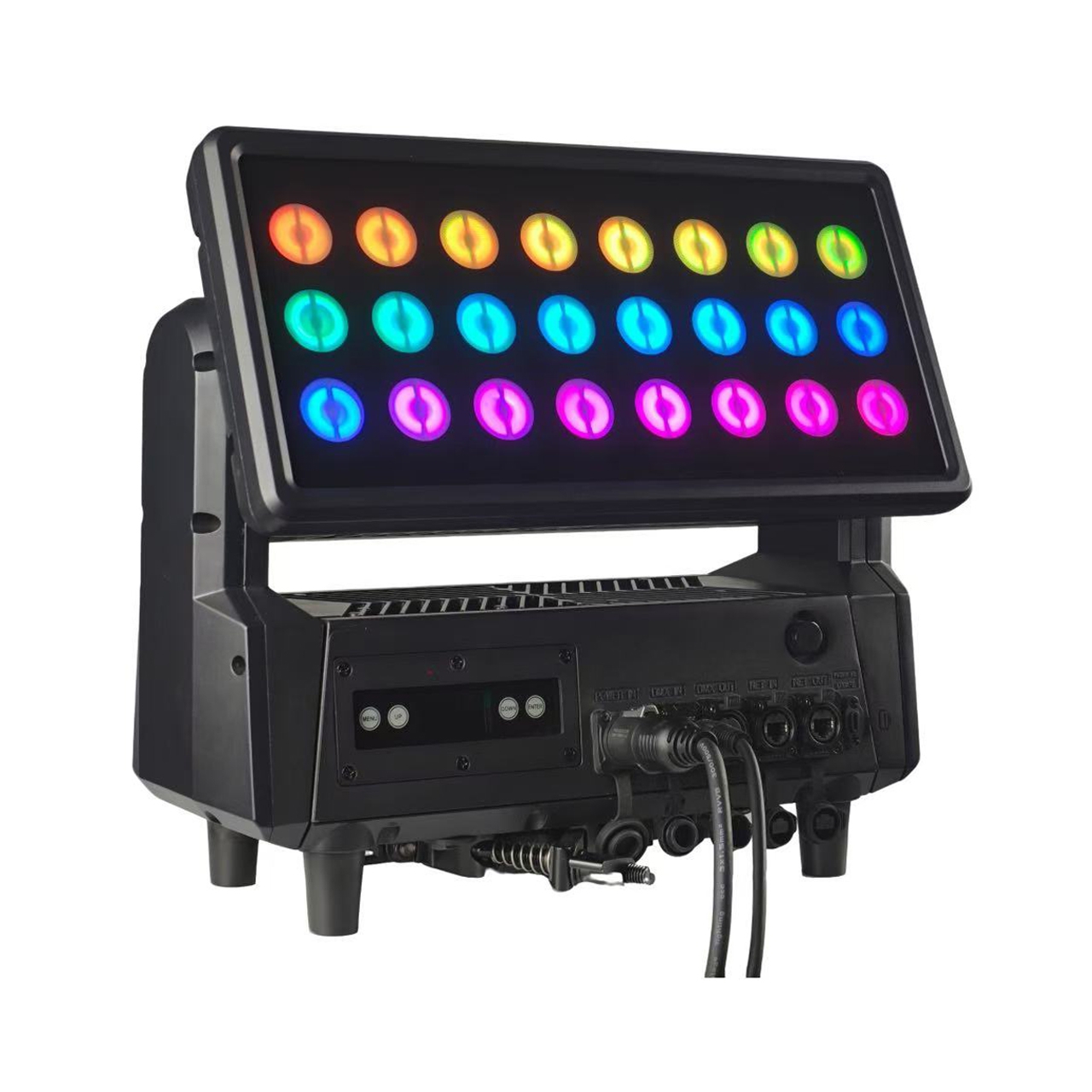

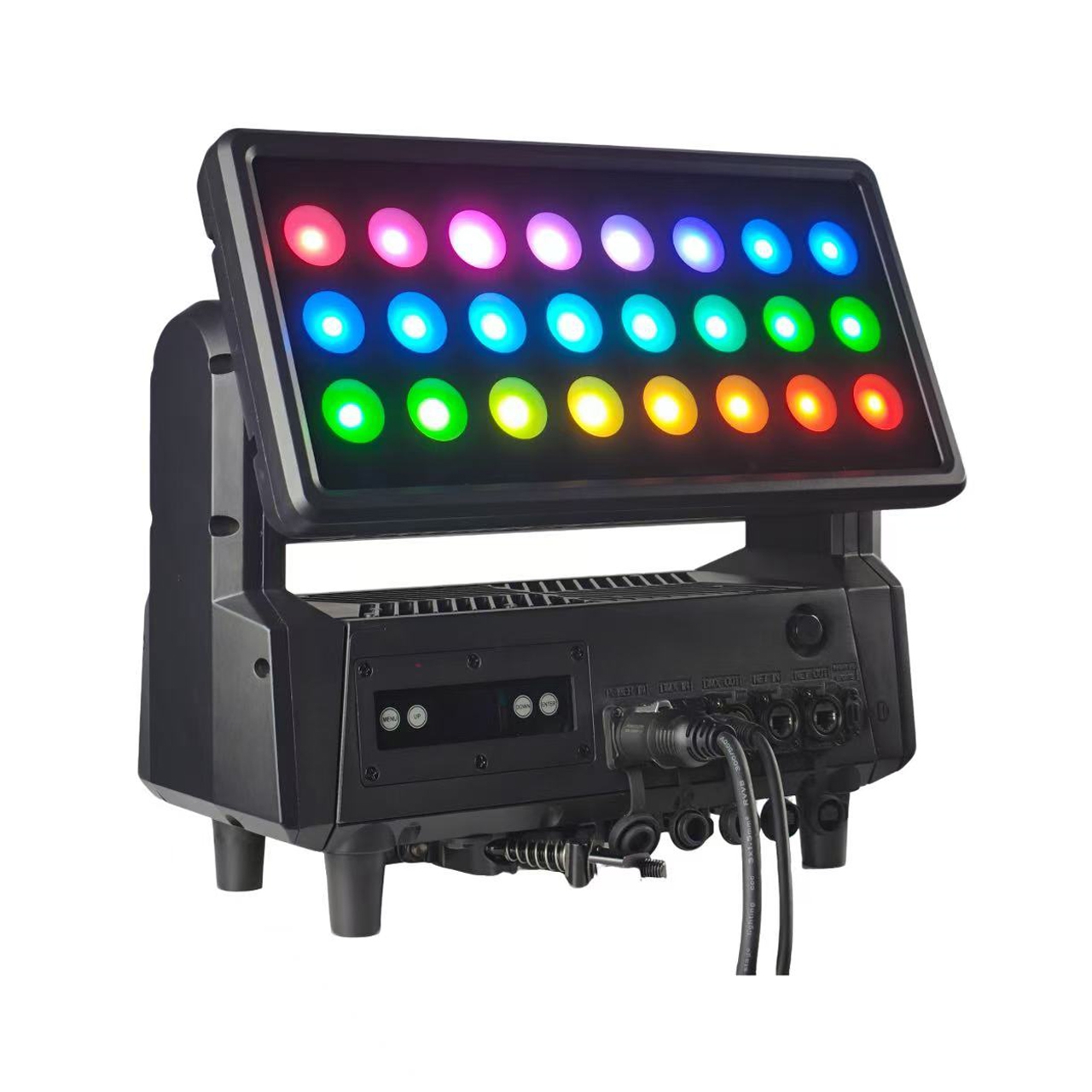

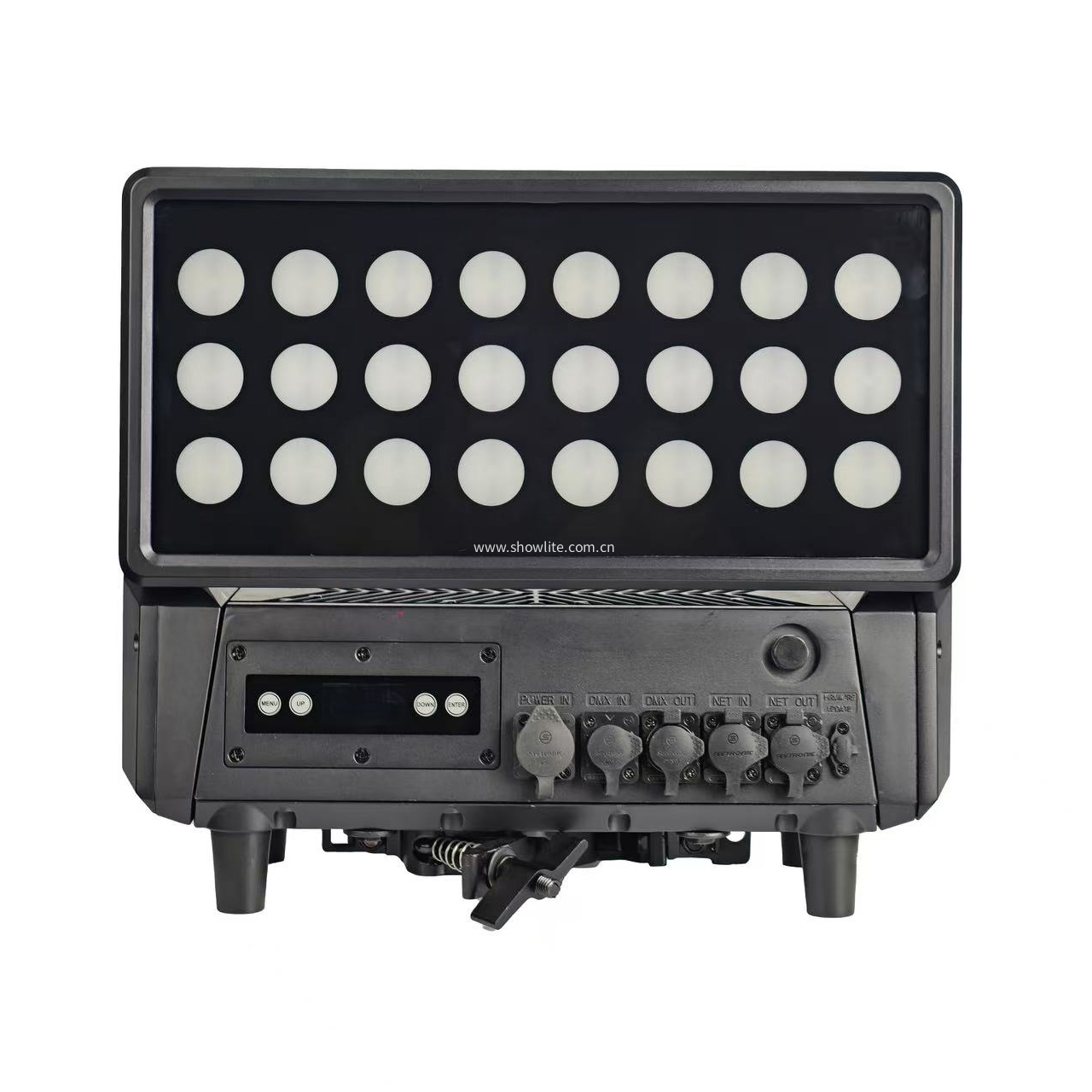

SL-MW1000-RGBW is an outdoor 1000W Powerful moving led wash light for stage effect, which uses RGBW 4in1 40W x 24Pcs LEDs, and RGBW 4in1 6W x 24PCS LEDs，with E-Frost Function, with an innovative design of optics and cooling system,It uses the constant current and high frequency drive,IP rate is IP65, which it is suitable for concerts, festival,shows and 24-hours outdoor use.
LIGHT SOURCE
TX high quality 4in1 RGBW 5060 40W*24pcs +24pcs*6W RGBW 4in1 LEDs
Life Span: ＞ 50,000 hours
COLOR SYSTEM
RGBL color mixing
CTO 2700K-10000K adjustable
Pixel matrix: Main LED and Auxiliary LED both can be control individually
Beam Angle: Main LED 12°
Main LED with E-frost 48°
Auxiliary LED 110°
Auxiliary LED with E-frost 106°
Combined 12°
Combined with E-frost 50°
EFFECTS
All-optical domain dimming, grade dimming accuracy
Tilt movement 185degress speed can be adjustable
Color macro and gradual color change effects
CONTROL AND PROGRAMMING
Control Channel: 314/222/29/30/288/240/192/144/144/120/96/72 control channel modes
Protocol: DMX512/RDM/Art-Net/sACN/Mater-Salve
Menu display: OLED touch display
Power Connection: Outdoor PowerCon input
DMX Connection: Outdoor 3-pin or 5-pin dmx XLR input/output optaionla
Art-Net Connection: Art-Net input/output
ELECTRONIC CONTROL TECHNOLOGY
0-100% dimmer
Constant current drive mode
DMX channel level monitoring
Fixture information query
Initial brightness setting for all colors
POWER SUPPLY
AC110-240V/50-60Hz
Input Power: 1000W
Overcurrent, overvoltage and overheating protection
WORKING POSITION
Any safe position to install
WORKING TEMPERATURE
﹣10℃ - 45℃
PHYSICAL
Fixture:
Net Weight: 14.5kgs
Product Dimension: 482*178*243MM
IP RATE
IP65
MISC/OPTIONS
User manual: included
Power cable: included
DMX cable: not included
Safety cable: not included
Mounting clamp: not included
Flight case: not included
